SITEX CP DIRECTIONAL
CP Series portable, powerfull and lightweight x-ray generator
SITEX CP DIRECTIONAL
Portable X-RAY GENERATOR
BEST EVER DESIGN
Teledyne ICM’s CPSERIES has been designed with a view to revolutionizing the handling and performances of portable X-Ray sets. Despite having managed to halve the weight of similar portable X-Ray generators available on the market (while continuing to provide the same power output), the SITEX CPSERIES generators feature a shutter, a laser pointer, a beryllium window, an aluminum filter and two integrated diaphragms (customized sizes are available upon request). Without compromising the robustness and reliability for which ICM products are renowned, the small size and light weight of the SITEX CPSERIES will radically change the way that you perform your RT inspections. And you will see a positive impact in terms of both quality and return on investment (ROI).
PERFORMANCE
While the SITEX CP200D & CP320D weigh just 12 Kg & 23 Kg respectively, they are extremely powerful and capable of penetrating 42 mm (CP200D) and 70 mm (CP320D) of steel in just under 10 minutes. Furthermore, our unrivalled air-cooling system combined with the CP output translates into a 100 % duty cycle at 30°. Moreover, its broad input power range (from 90 to 264 VAC) enables the SITEX CPSERIES to be operated on virtually any grid in the world and generator sets. Finally, its low power consumption will ensure that your inspections are more cost-effective and environmentally friendly.
AND THERE’S MORE…
The SITEX CPSERIES has succeeded in setting new standards in terms of both handling and operating costs. It comes equipped with a number of intuitive yet exclusive user-friendly functions and characteristics that you will be able to benefit from on a daily basis. Furthermore, our exposure time computing software can be fed with your own exposure charts, which will result in improved accuracy for specific applications and type of materials. The POWERBOX control unit automatically detects the positioning of the carrousel to avoid shooting through the shutter by mistake. Additional outstanding features include V-shaped hand rings, constant power mode, radial or axial socket position, custom-length interconnecting cables (up to 100 m), a low voltage DC fan with variable speed, and much more.
OUR CHALLENGE
“To drastically reduce the weight and size of Constant Potential X-Ray generator while maintaining first class performances”
To successfully meet this challenge, our engineers have worked at designing an exceptional new X-Ray insert. This highly compact X-Ray tube combined with a revolutionary cooling system and a multiple output carrousel can definitely be considered to be the most versatile X-Ray generator ever developed. In addition, performances are not compromised in any way whatsoever.

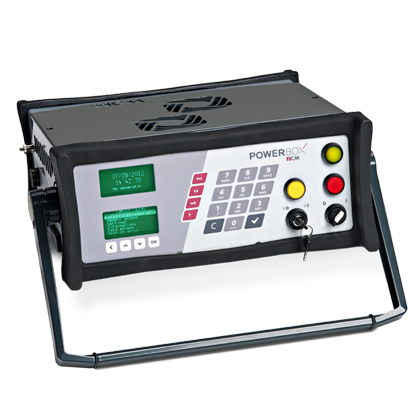

POWERBOX
CONTROL UNIT
Developed for the CPSERIES, the POWERBOX control unit is not merely a minor component of the new system. It is one of the best!
ICM has designed the first ever ‘Plug & Play’ control unit for portable X-Ray generators. This outstanding innovation features two graphic Vacuum Fluorescent Displays and MIL-DTL 26482 connectors.
Light yet robust, it provides a multifunctional position handle and a highly intuitive menu. Furthermore, the POWERBOX is shockproof, safe and reliable. And this even applies to its operation in harsh, cold, warm and dusty environments.
Its broader power range (from 90V to 264 VAC) voltage selector means that this small and robust control unit will operate from practically any main power network in the world. In addition, its 0.99 power factor means that it can operate with the most commonly used sets available on the market.
In fact, it will even be possible for the POWERBOX to take its energy from a car battery by simply using a small additional DC/AC converter…
